HSQ-50CFE loudspeaker kit for 2 x SQ-50C orto-acoustical loudspeakers.
All electronic / electrical parts needed for two loudspeakers.
Updated 2022-06-11


HSQ-50CFE consists of two woofers, two tweeters, two filters with electronic self-resetting fuses, 10 m cable and two  spring loaded contacts. That is, all electronics you need, but not the boxes themselves.

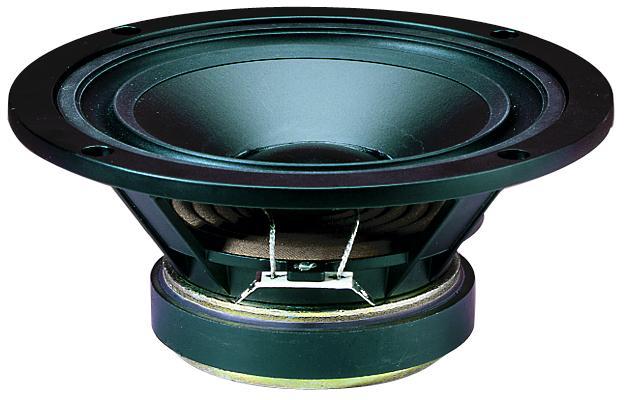

LS 18532. 8 Ohm Hi-fi woofer / midrange with fantastic sound quality.
Stiff, exponantially shaped PP cone with mid/high dome (-3dB: 10 kHz).
Long travel coil, inverted rubber surround. Very well damped cone for a neutral, uncoloured sound.
Stable aluminum die cast frame.
RMS 50 W, music power 80 W.

LST 9520. 8 Ohm Hi-Fi dometweeter, with linear frequency response and very low distortion.
RMS 50W, music power 100W.
One of the best tweeters we have ever heard!

BP-50-20. The bass port for this kit. Made by us to get precisely the right properties.

HK-8. Loudspeaker cable, 10 m. Enough for both internal wiring and two 3.5 m loudspeaker cables.
Polarity indication. 		Spring loaded terminals. Strong grip gives you a very reliable connection.
Easily mounted from outside the box.

High quality filters:

   First order filtering for optimum stereo image and minimized phase shift.
   Conjugate link at the input to stabilize sensitive amplifiers.
   Electronic, self resetting fuse. When tripped, the volume drops to protect the loudspeaker. Turn down the volume of the amplifier for half a minute and everything is back to normal again.
   Aircoil, ceramic  resistors, high grade polypropylene capacitors.

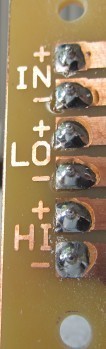

On the back of the PCB the text IN +/- (input from amplifier), LO +/- (woofer), HI +/- (tweeter) shows how to connect to the screw terminals.

Order by email, click here

For shipping, our shipping company needs your name, full address and phone number.
We will reply with an estimated delivery time, and if you agree, a PayPal Money Request.
PayPal accepts Visa, MasterCard, Discover, and American Express (and, of course, PayPal balance).

As we are totally dependent on our german supplier, the prices on this page may change suddenly. (Between november 2021 and june 2022 their retail prices went up by almost 50%.)
Therefore, please contact us by email (email@valutronic.se) to check if the prices below are still OK.

The cost of the complete HSQ-50-20E stereo kit including shipment varies depending on where you live.
Price as of june 10, 2022:

EU countries, VAT included: 5957 SEK *
Norway, Iceland, Faroe Islands, Greenland, Åland: 4942 SEK
Europe 1, see list below: 4947 SEK
Europe 2, see list below: 4971 SEK
USA, Canada: 5212 SEK**
Rest of the world where PayPal works: 5262 SEK***

To check the cost in your local currency, check with PayPal Currency Converter tool.
You fill in your country and your currency. Then sellers country and currency (Sweden, SEK). You choose "For buying and paying" and finally the appropriate cost for the kit, depending on where you live.
You can of course check with any bank or simply use Google search for SEK and your currency code.
For example, if you search for SEK USD you will get the exchage rate for Swedish krona to/from US dollars. However, this will only give an approximate rate, as PayPal has its own conversion rates.

Europe I

French Guyana, Guadeloupe, Martinique, Réunion, Mayotte, Gibraltar, Isle of Man, Channel islands, Monaco, Montenegro, San Marino, Vatikan city

Europe II

Albania, Andorra, Bosnien-Hercegovina, Georgia, Kosovo, Kroatia, Macedonia, Moldava, Russia, Switzerland, Serbia, Ukraina, Belarus

When you send us your order we reply with order confirmation / delivery time and a PayPal Money Request.
After payment, even if the kits are in stock, it can take up to two workdays before shipping.
As soon as your package is sent we will send the tracking number to your email address.
When you order, it is important that we get your name, full address, phone number and email address so that the shipping company can communicate with you and get the package delivered as quickly as possible to you.

Approximate shipping time during normal circumstances, when air traffic works at it should:
EU countries: 2 - 4 workdays
Non-EU european countries 3 - 6 workdays (customs clearance often needed)
The United States, Canada, Australia and New Zealand: Typically one week.
Central and South America, most parts of Asia and Africa: 1 - 3 weeks*

*Packages to countries outside Europe are normally shipped by air from Sweden to your country, so that part of the shipping is always quick. The delivery time inside your country depends on the efficiency of your local distribution company.

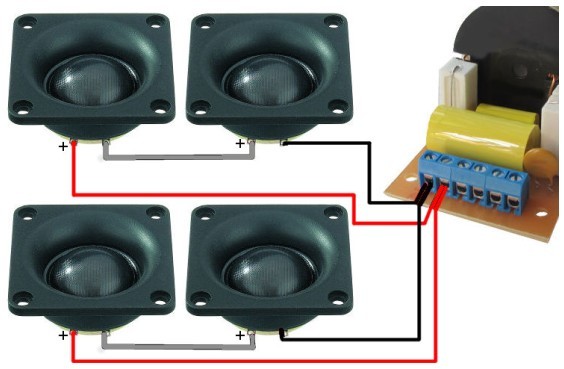

Connection of the tweeters:

Inputs/outputs on the blue terminal (main picture): 1 is on the left, 6 is on the right.
On the picture of the back of the PCB (to the right), 1 is at the bottom, 6 is on top.
Coonections 1 and 2 are marked HI on the back of the PCB, 1 is minus, 2 is plus
Minus on the woofer goes to 3, plus to 4. (LO -/+ on the back of the PCB)
Input mInus goes to 5, input plus goes to 6. (IN -/+ on the back of the PCB)
